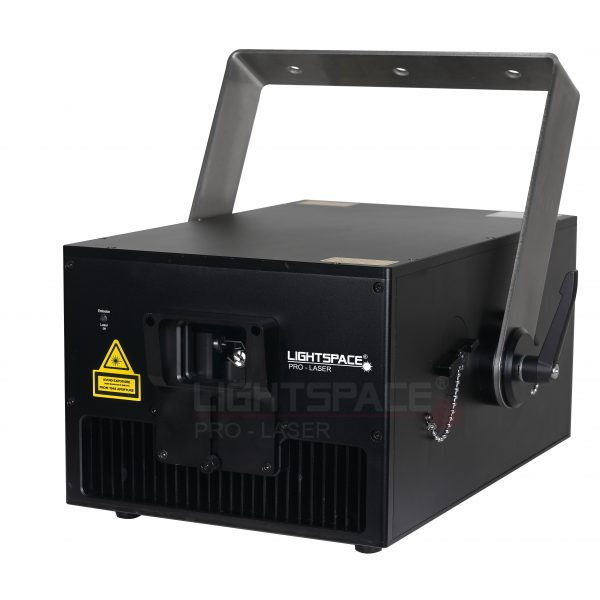

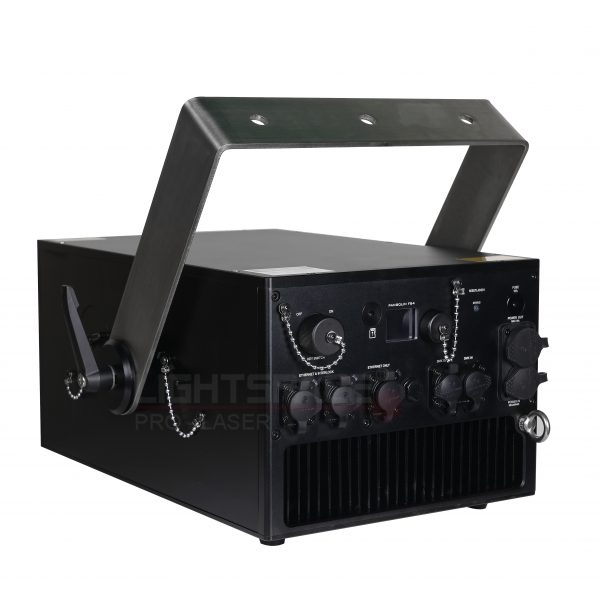

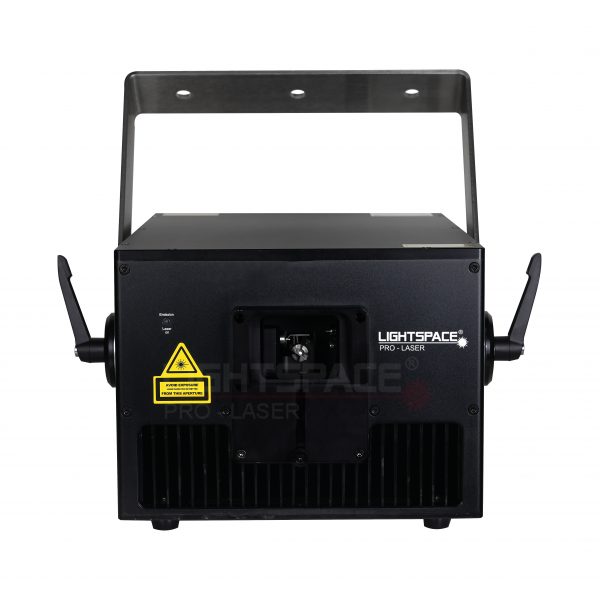

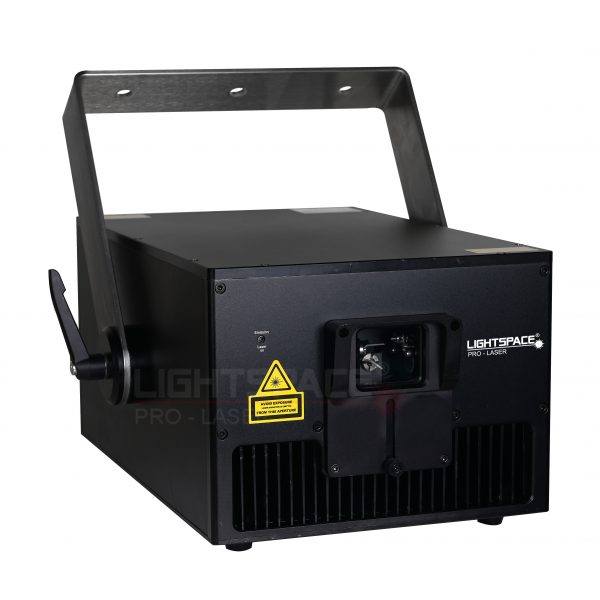

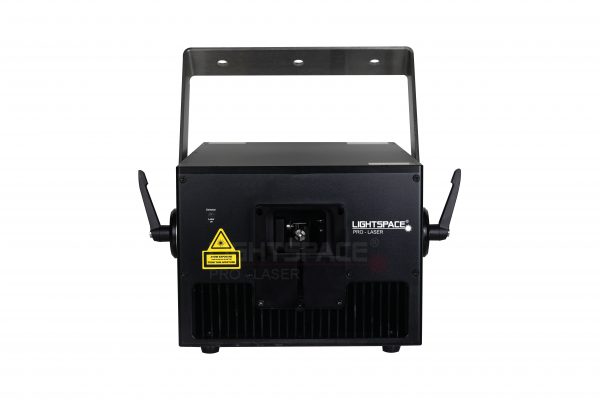

Unicorn 40W(IP65)

features

  • Pure diode, long life-span. High reliability.
  • Low beam divergence <1.2mrad(full angle),strong penetrating power.
  • TEC dual temperature control, Wider environment operating temperature.
  • RGB divergence at the same angle, color modulation at the same level, truly realize wide color .temperature modulation.
  • High quality scanning system, wide-angle scanning.Full diodes, longer lifetime and higher reliability, pure white color balance. lts robust anosturdy design makes it perfect for medium sized venues and events.
  • Optional to build in Pangolin FB4, controlling via Ethernet, ArtNet or SD card etc.

Description

Specification:

  • Total laser power:                ≥ 40,000mW
  • R丨G丨B :                          11,000mW丨14,000mW丨16,000mW
  • Wavelength:                       R-638nm丨G-525nm丨B-450nm
  • Beam divergence:              <1.2mrad(full angle)
  • Beam diameter:                  <7mm
  • Modulation:                         100KHz Analog
  • Modulation way:                  linear analog modulation
  • Scanner type:                      PT-A30HM
  • Scanning System:               30Kpps@8°
  • Scan angle:                         45°
  • Signal connector:                Ethernet,ArtNet,FB4-DMX
  • Ingress rating:                     IP65
  • Temperature control:          TEC
  • Operatingtemperature:        -10℃-40℃
  • Dimensions:                        L402×W263×H211mm
  • Weight:                                22.2kg
  • Power requirements:          100-240V50/60Hz
  • Consumption:                      750W

DATASHEET

Unicorn 40W（IP65)
