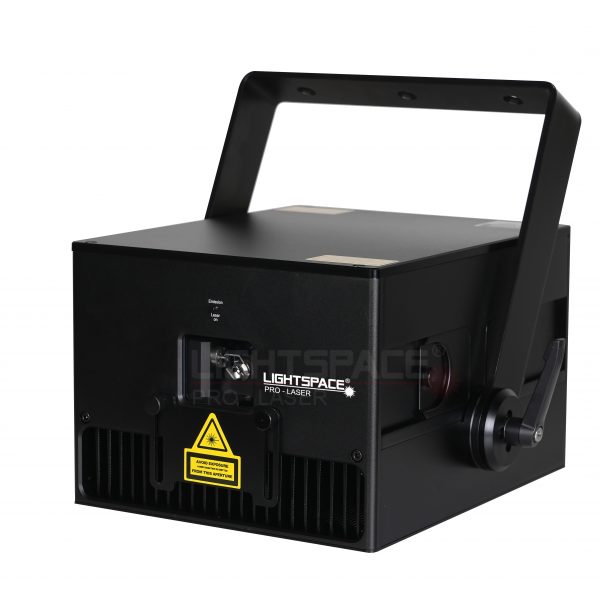

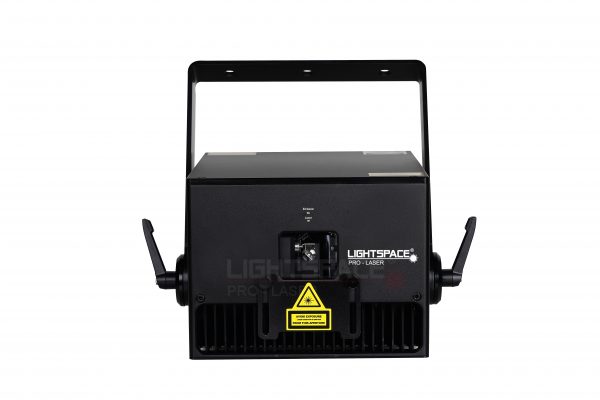

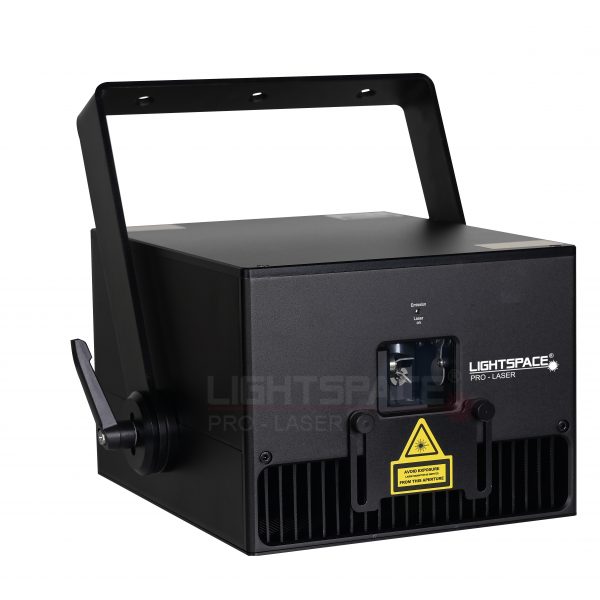

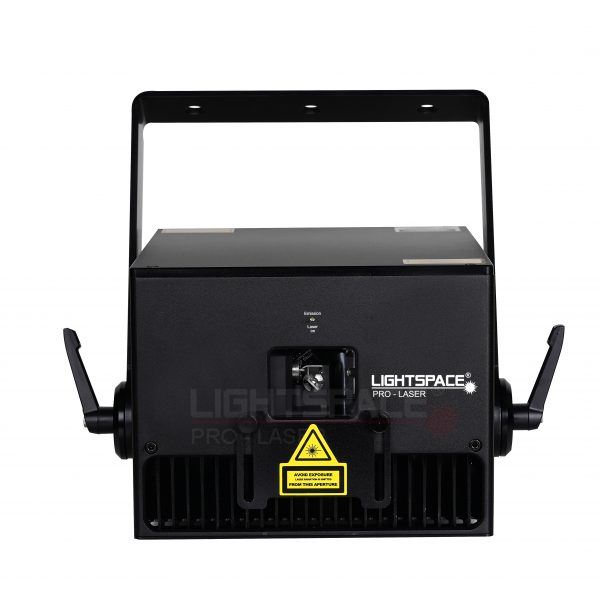

Unicorn 10W

features

  • Pure diode, long life-span. High reliability
  • Low beam divergence <1.2mrad(full angle),strong penetrating power.
  • TEC dual temperature control, Wider environment operating temperature.
  • RGB divergence at the same angle, color modulation at the same level, truly realize widecolor .temperature modulation.
  • High quality scanning system, wide-angle scanning.
  • Optional to build in Pangolin FB4, controlling via Ethernet, lLDA, or SD cardetc.

Description

Specification:

  • Total laser power:                ≥ 10,000mW
  • R丨G丨B :                           3,200mW丨3,200mW丨4,000mW
  • Wavelength:                        R-638nm丨G-525nm丨B-450nm
  • Beam divergence:               <1.2mrad(full angle)
  • Beam diameter:                   <6mm
  • Modulation:                         100KHz Analog
  • Modulation way:                  linear analog modulation
  • Scanner type:                      PT-A40H
  • Scanning System:               30Kpps@8°
  • Scan angle:                         45°

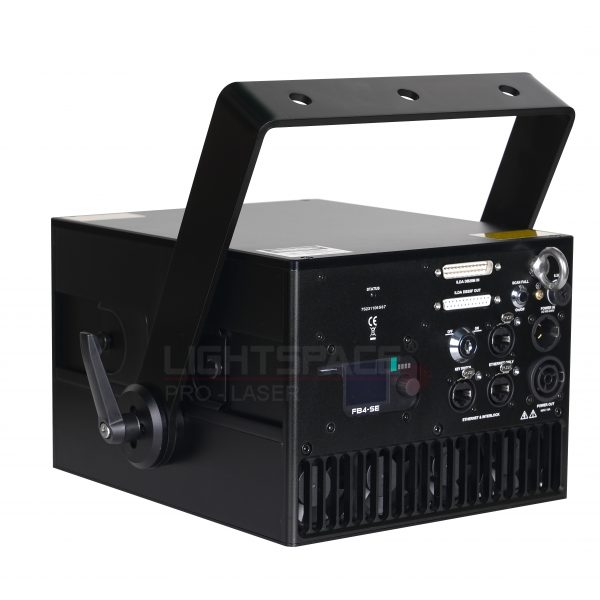

  • Signal connector:                Ethernet,ArtNet,DMX,ILDA
  • Ingress rating:                     indoor
  • Temperature control:          TEC
  • Operatingtemperature:        -10℃-40℃
  • Dimensions:                        L276×W219×H181mm
  • Weight:                                9.5kg
  • Power requirements:          100-240V50/60Hz
  • Consumption:                     300W

DATASHEET

Unicorn 10W
