BeamBar 12 (IP65)

  • Pure diode, long life-span. High reliability. ·
  • Low beam divergence <1.4mrad(full angle),strong penetrating power.
  • TEC dual temperature control, Wider environment operating temperature.
  • IP65 protection level, suitable for outdoor use.
  • High-precision scanning mirror, coupled with 16-bit position adjustment, makes the beam array more refined.
  • 100KHz analog modulation, making colors more vibrant. ·Certified by FDA and compliant with IEC 60825-1:2014.

Description

Specification:

  • Total laser power:                ≥ 13200mW
  • R丨G丨B                            600*6 mW  丨800*6 mW  丨800*6 mW
  • Beam divergence:              <1.4mrad(full angle)
  • Modulation:                        100KHz Analog
  • Modulation way:                 linear analog modulation
  • Scanner type:                     PT-A40M
  • Scanning System:              30Kpps@8°
  • Scan angle:                        45°
  • Signal connector:               DMX-512
  • Ingress rating:                    IP65
  • Temperature control:          TEC
  • Operatingtemperature:       -10℃-40℃
  • Dimensions:                        L960×W181×H148mm
  • Weight:                               23kg
  • Power requirements:         100-240V50/60Hz
  • Consumption:                    600W

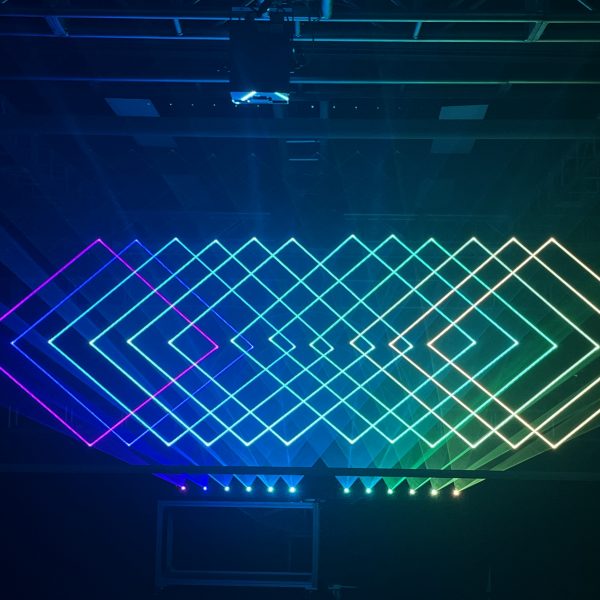

Show Effect



DATASHEET

BEAMBAR 12W
